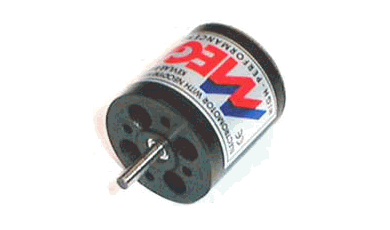

MEGA ACn 16/7/6
Specifications

Weight  No Load Current  Io  m W No Load RPM/Volt Diameter Length Inches Rotor Length mm Max
Amps
48g 1.69oz .9 41 2850 28mm 1.1" 1.2 7 18



CELLS PROP

RPM

 Amps Gear CONTROLLER
7 5X5 20,000 15 DD Thunderbird 18
8 4.75X4.75 23,000 15 DD "
8 10X4.7 8,400 15 2.8:1 "
10 12X6 6,500 15 4.5:1 "

Small very fast airplanes

Park Flyers and War Birds with Mega MicroGear 16

1/16th Scale Cars, Mini Inferno & Mamba 25 ESC

19V  Maximum -18 Amps Maximum - 55,000 RPM Maximum

ACn 16 series motors out perform all speed 400 size motors.

Same Physical dimensions of SHORT speed 400 motors.

Shaft 1/8" Diameter = 3.175mm often called 3.2mm
